Chemical Injection Pump Packing Seals

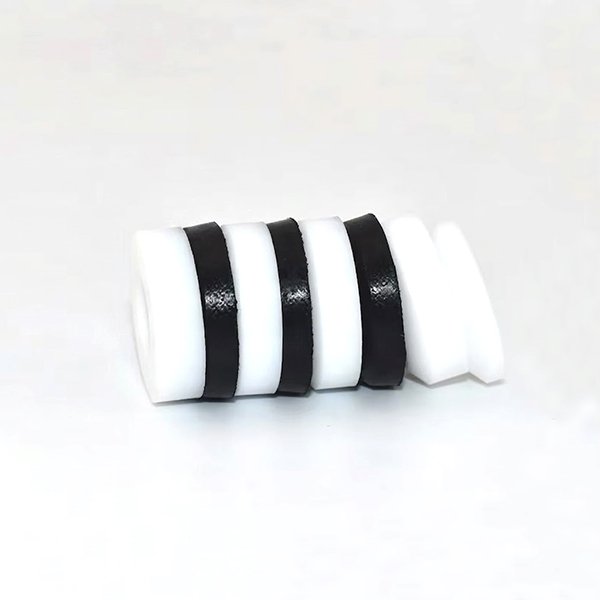

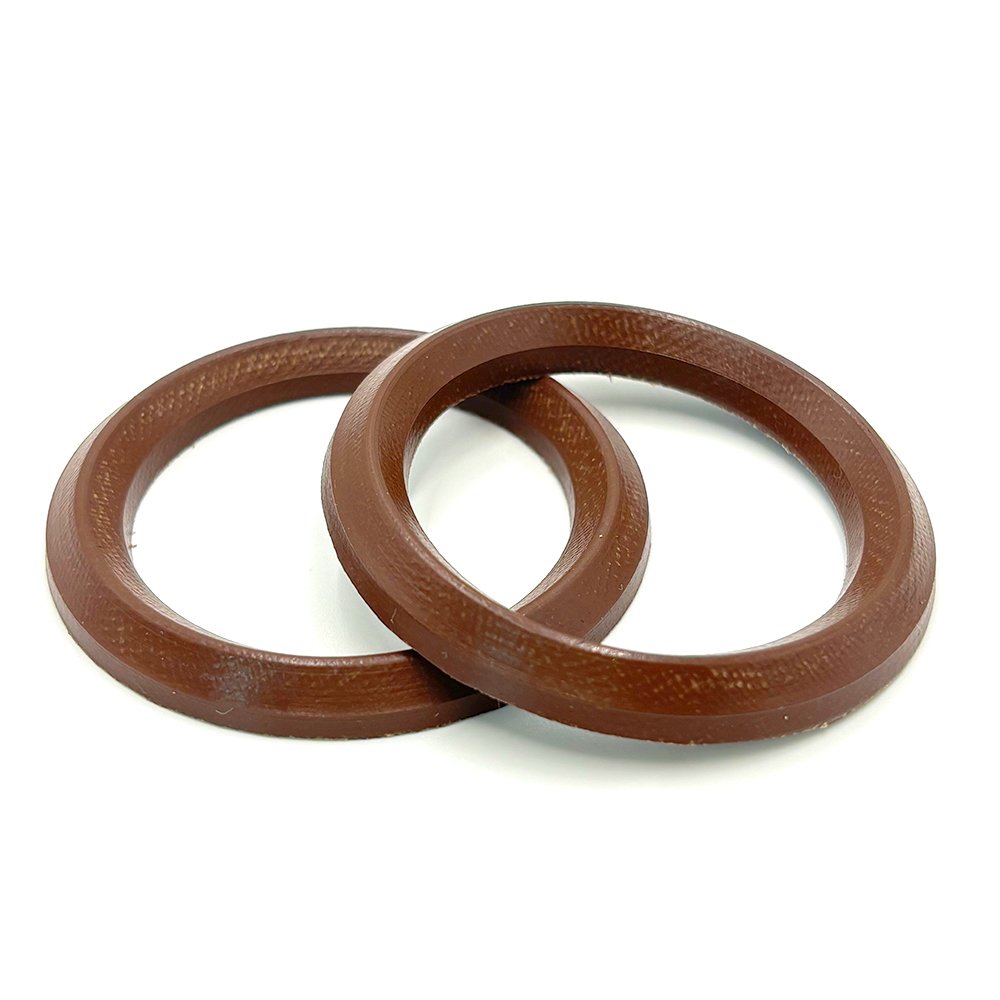

Our chemical injection pump packing seals are a high-performance, multi-layered sealing solution engineered specifically for high-pressure pumps and valves. By combining the elastic resilience of high-grade elastomers (Viton or Buna) with the low-friction, chemical inertness of Teflon (PTFE), this V-packing set provides a robust barrier against fluid loss and environmental contamination.

Technical Specifications

Why Choose Our Chemical Injection Pump Packing Seals?

• Multi-Lip Redundancy: The stackable V-ring design (typically 3-7 rings) provides multiple sealing contact points. Even if one lip suffers minor wear, the subsequent rings maintain system integrity.

• Automatic Pressure Compensation: Under hydraulic load, the V-shaped profile expands outward. The higher the pressure, the tighter the seal.

• Wear Compensation & Longevity: Unlike standard O-rings, our fabric-reinforced V-packing can be axially adjusted. Simply tighten the gland nut to re-energize the seal, extending service life by 5-10 times over conventional rubber seals.

• Aramid/Fabric Reinforcement: Utilizing advanced fiber-strengthening technology, our seals withstand axial vibration (up to 0.3mm) and high-frequency pressure surges without deformation.

Product Structure & Operation

Each set is a precision-engineered stack consisting of:

1. Female adapter (support ring): Protects the V-rings from extrusion under high pressure.

2. V-sealing rings: The core “lips” that provide the dynamic seal. Available in pure PTFE or fabric-reinforced elastomers.

3. Male adapter (pressure ring): Distributes the gland’s mechanical force evenly across the V-rings.

Working Principle: The V-opening faces the fluid pressure. As media enters the V-groove, it forces the lips against the rod and the stuffing box wall, creating a tight fluid film that prevents leakage while minimizing friction.

Versatile Industrial Applications

Specifically designed for chemical injection shaft, our packing is also widely utilized in:

• Oil & gas: Fracking pumps (handling up to 15% sand content), wellhead equipment.

• Heavy machinery: Hydraulic forging presses, mining equipment, and large excavators.

• Fluid control: High-pressure valves and stuffing boxes in petrochemical refineries.

• Marine & hydro: Water conservancy machinery and shipboard hydraulic systems.

Installation Tips for Maximum Performance

• Pre-Lubrication: Always coat each ring with a compatible lubricant before assembly to prevent dry-start wear.

• Orientation Matters: Ensure the “V” opening faces the high-pressure side.

• Controlled Tension: Do not over-tighten during initial installation; allow the “automatic compensation” design to work with the fluid pressure.
