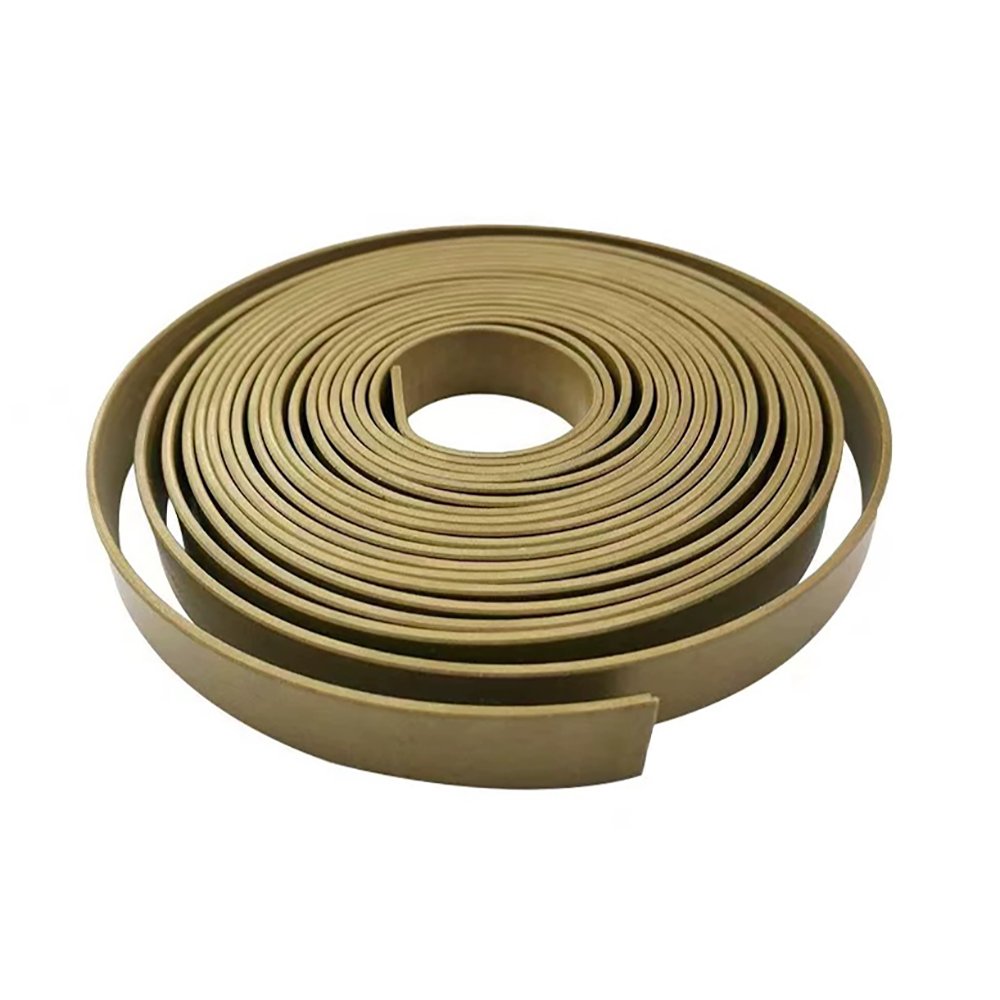

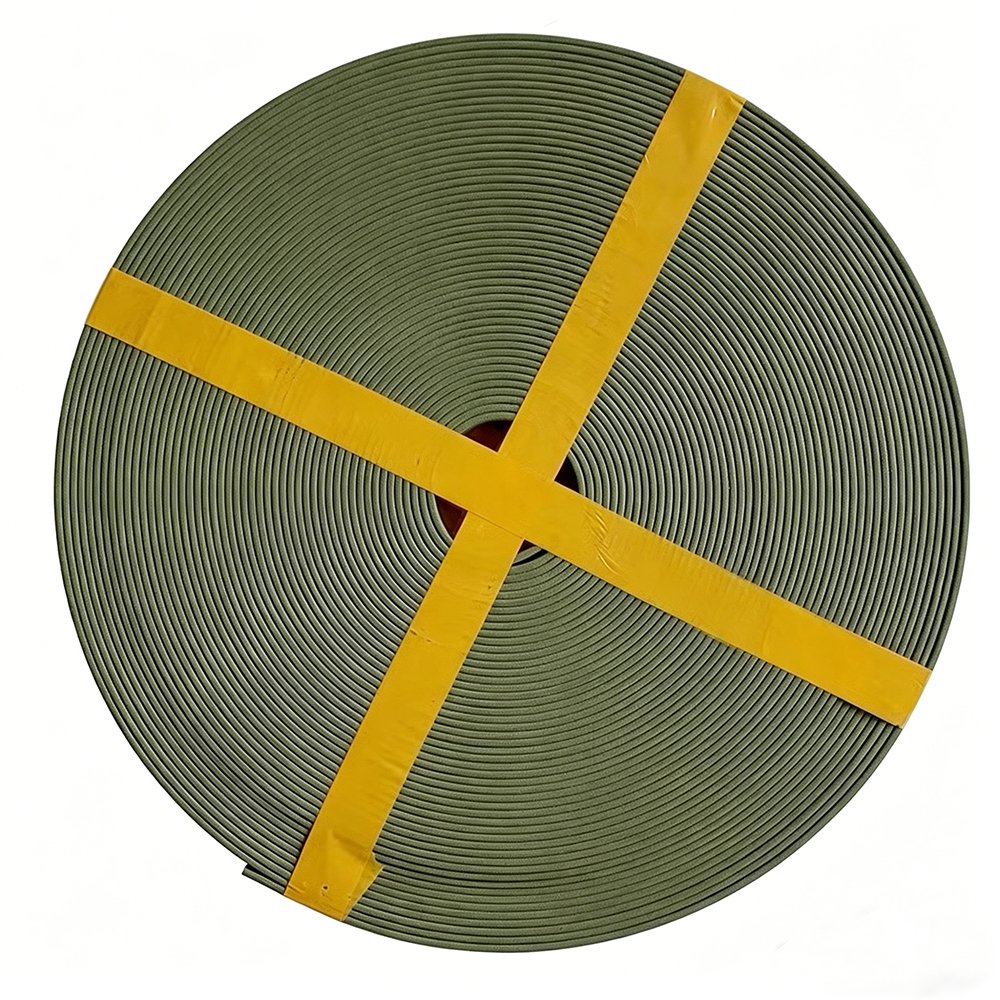

PTFE filled bronze guide tape—also known as GST wear strip—is engineered for guiding and supporting pistons and piston rods in reciprocating hydraulic cylinders. It provides precise linear guidance, absorbs radial loads, and prevents direct metal-to-metal contact inside the cylinder.
PTFE filled bronze guide tape features outstanding low-friction properties, excellent dry-running behavior, and high chemical stability. It is suitable for high-frequency, long-stroke, and high-temperature hydraulic applications.
As temperature increases, the allowable load capacity of PTFE materials decreases. For temperatures below 0°C, please consult us for technical evaluation.
Technical Data
Speed: ≤ 15 m/s
Temperature: -60°C to +250°C
Pressure: ≤ 63 MPa
Media: Hydraulic oils, compressed air
Materials
40% bronze mixed with 60% pure PTFE, brown, green, grey and glod color are available, customized color is also acceptable.

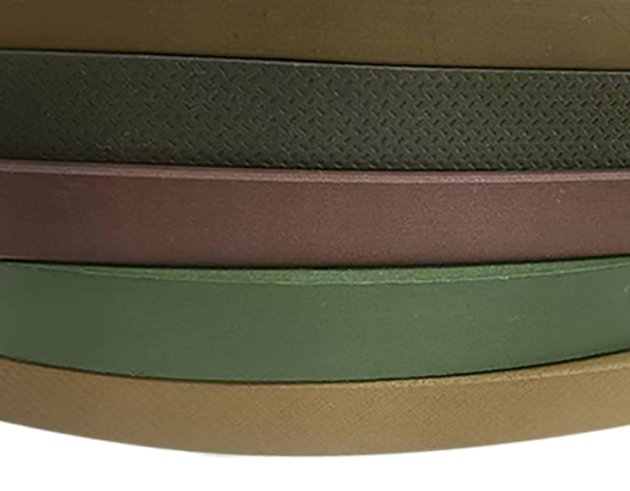

For the PTFE bronze guide tapes with a thickness of 2mm or above, QZSEALS provides a specialized embossed structure on the sliding surfaces. This design features micro-lubricant pockets that significantly improve initial lubrication and promote the formation of a stable lubricant film. These pockets also act as “traps” to embed foreign particles, effectively protecting the entire sealing system from wear. To ensure maximum versatility for both piston and rod applications, QZSEALS typically supplies these guide tapes with double-sided embossing as standard.
Alternative Material Options
Beyond Bronze, QZSEALS offers specialized fillers to meet specific environmental requirements:
PTFE filled carbon fiber: features enhanced mechanical strength and thermal conductivity. It is highly resistant to deformation and wear, making it ideal for high-temperature applications and linear moving mechanisms like slides and guide rods.
PTFE filled carbon graphite: combines the self-lubricating properties of graphite with the strength of carbon. This material offers an ultra-low friction coefficient and superior chemical resistance, perfect for corrosive environments and high-load sliding units in aerospace or automotive industries.
Applications
The guide tape is widely used in hydraulic and other reciprocating, oscillating, and slow-rotating systems. It is suitable for light-to-medium load applications with limited radial force.
Typical applications include:
Injection molding machines
Shock absorbers
Accumulators
Bulldozers & excavators
Forging presses & ceramic brick machines
Rolling mills & metallurgical equipment
Agricultural and forestry machinery
Conveying machinery
Chemical and marine equipment
Machine tools and construction machinery
Features
Excellent chemical and heat resistance
Outstanding wear resistance & long service life
Extremely low friction, no stick-slip effect
High load-bearing capability; prevents metal contact
Absorbs side loads & suppresses vibration
Allows increased extrusion gaps due to proper alignment
Good dust-tolerance; foreign particles can embed safely
Simple groove design and easy installation
Stable operation across wide media range
Available Sizes (Width × Thickness)
3*1.5mm
5.6*1.5mm
8.1*1.5mm
15*1.5mm
20*1.5mm
5*2mm
6*2mm
8*2mm
10*2mm
15*2mm
20*2mm
25*2mm
30*2mm
35*2mm
40*2mm
45*2mm
50*2mm
5.6*2.5mm
6.3*2.5mm
8*2.5mm
10*2.5mm
15*2.5mm
20*2.5mm
25*2.5mm
30*2.5mm
8*3mm
9.5*3mm
10*3mm
12.7*3mm
15*3mm
20*3mm
25*3mm
30*3mm
35*3mm
40*3mm
45*3mm
50*3mm
15*3.5mm
20*3.5mm
25*3.5mm
30*3.5mm
35*3.5mm
40*3.5mm
45*3.5mm
50*3.5mm
8*4mm
10*4mm
15*4mm
20*4mm
25*4mm
30*4mm
35*4mm
40*4mm
50*4mm
Contact us to find out the specific length of the roll for each size.
Why Choose QZSEALS?
PTFE Filled Bronze Guide Tape Manufacturer: As a leading factory in China, we provide premium guide strips with factory-direct pricing and technical expertise.
Versatile Material Range: We produce bronze, carbon, and graphite-filled PTFE to match any load or environmental requirement.
Advanced Technology: Patented extrusion ensures superior wear resistance and high-load stability.
Customized Embossing: Standard double-sided embossing available for thicknesses ≥2mm to enhance lubrication.
Cost Efficiency: Continuous strips with clear size markings reduce waste and simplify installation.
