Vacuum Furnace Door Lip Seal Description
Vacuum furnace door lip seal is the core component for maintaining the atmosphere integrity and operational safety of thermal processing equipment. These seals are specifically designed to facilitate high-vacuum environments 10⁻²Pa to 10⁻⁵ Pa) and protect the purity of controlled atmospheres during critical sintering cycles.
Applications & Processes
Our vacuum furnace door lip seal solutions are optimized for:
High-Temperature Sintering: Ideal for the production of hard alloys, magnetic materials, and powder metallurgy parts.
Controlled Atmosphere & Pressure Sintering: Ensuring no leakage of working gases to maintain the precise atmosphere and pressure required for metallurgical bonding.
Versatile Sealing Structures: Fully compatible with various furnace designs, typically utilizing high-temperature silicone or rubber strips that compress against each other to achieve a hermetic seal.
Functions for Industrial Safety
High Vacuum Maintenance: Prevents external air from infiltrating the chamber, allowing mechanical and molecular pumps to reach their rated vacuum levels.
Gas Leakage Prevention: During the introduction of protective gases, the lip seal ensures that expensive or hazardous working gases do not escape the system.
Personnel & Equipment Protection: By preventing the overflow of high-temperature or toxic gases, the seal acts as a critical safety barrier for both the equipment and the operators.
Thermal Efficiency: Minimizes heat loss at the door interface to improve heating rates and ensure superior temperature uniformity within the furnace.
Material Choose of Vacuum Furnace Door Lip Seal
We provide various material options to match the specific sintering temperature and chemical environment:

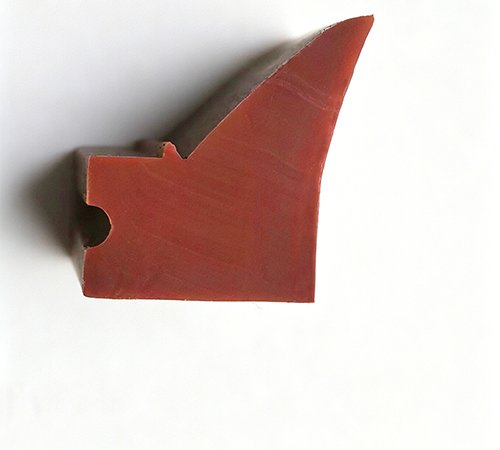

1. Silicone Vacuum Furnace Door Lip Seal
Temperature Range: -80°C to +260°C
Technical Advantage: This material offers outstanding ozone and UV resistance with exceptional flexibility. Our specialized silicone formula provides a service life up to three times longer than ordinary rubber, maintaining a reliable seal under constant high-heat cycles and vibration.
2.FKM (Viton) Vacuum Furnace Door Lip Seal
Temperature Range: Up to +200°C
Technical Advantage: Known for superior chemical and acid resistance, FKM is the ideal choice for harsh sintering environments. It remains stable when exposed to synthetic oils and corrosive media, preventing material degradation in specialized chemical vacuum processes.

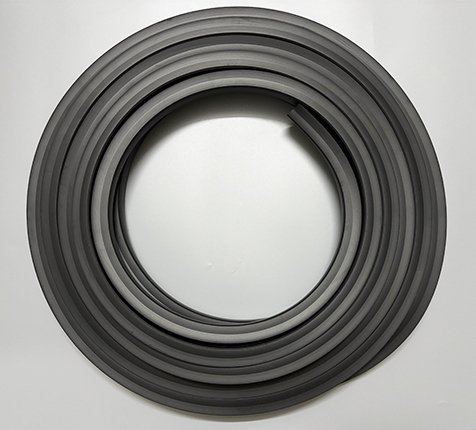

3. NBR Vacuum Furnace Door Lip Seal
Temperature Range: -40°C to +120°C
Technical Advantage: NBR provides high elasticity and exceptional resistance to mineral oils and industrial greases. It is a robust choice for standard vacuum operations where mechanical resilience and oil compatibility are the primary requirements.

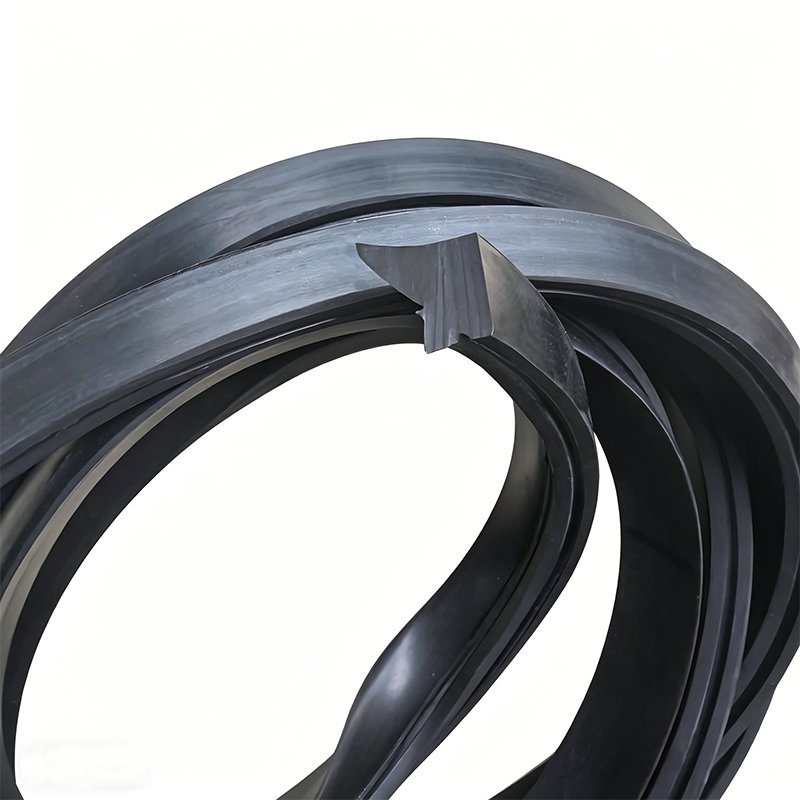

4. EPDM Vacuum Furnace Door Lip Seal
Temperature Range: -40°C to +150°C
Technical Advantage: EPDM is characterized by its excellent resistance to aging, water, and steam. It is the most cost-effective solution for non-oily industrial sealing applications, offering long-term durability in environments prone to oxidation.
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer specialized in sealing products. And we delivery our products to our customers directly.
Q: How long is your delivery time?
A: The general delivery time of Vacuum furnace door lip seal is 10 working days after receiving your order confirmation. If customize the product based on your drawing, it usually takes 20-25 working days to finish the production.
Q: What is your term of payment?
A: Big amount requires 50% to be prepaid and balance 50% payment before
shipping. Small amount is 100% advanced payment.
Q: Which payment method you can accept?
A: T/T, Paypal, etc. We accept any convenient and swift payment term.
Q: How do you ensure quality?
A: We have a set of management methods based on IS09001:2015, we have 100% test before delivery.
From raw material purchasing, product processing, and shipment inspection.
Q: What are your advantages?
A: We are original manufacturer and have a professional technical team, not only produce seals for customers, but also provide customers with customized sealing solutions. If you have sealing technology problems, please contact us.
