What is C380 Phenolic Resin Guide Tape?

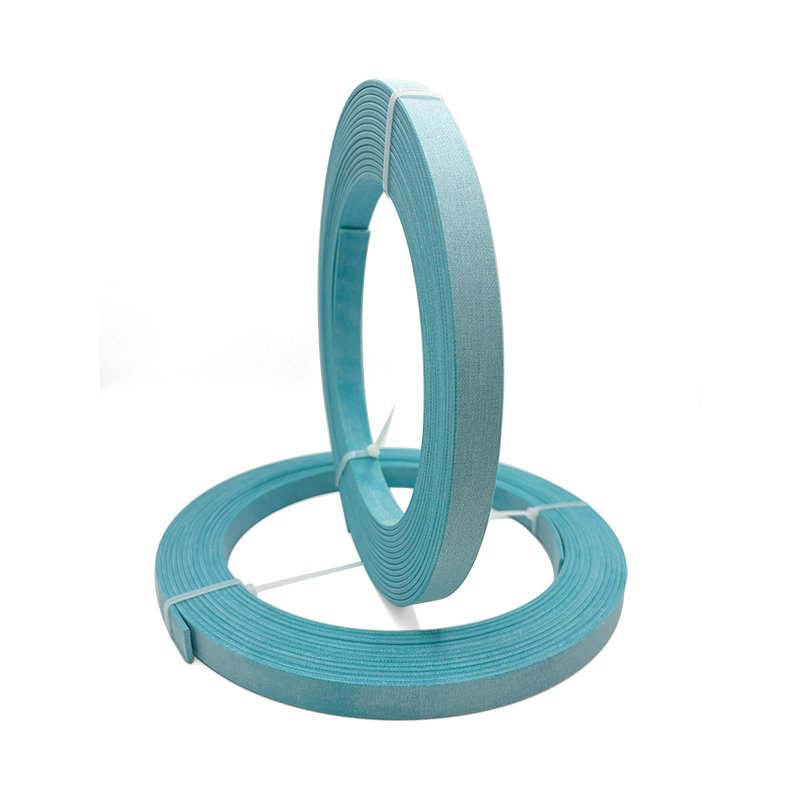

In high-performance hydraulic and pneumatic systems, the ability to manage heavy radial loads while preventing metal-to-metal contact is a critical engineering requirement. C380 phenolic resin guide tape has established itself as a premier solution for these demanding environments. It is a high-strength composite wear strip manufactured by impregnating fine-weave synthetic fabric with specially formulated phenolic resins.
As a specialized manufacturer, QZSEALS provides a dual-track material strategy to meet diverse engineering needs. We produce high-quality domestic phenolic resin with fabric strips (available in turquoise and red) for standard industrial applications, as well as premium C380 guide tapes manufactured from imported South Korean materials (distinguished by their signature turquoise color). These imported materials offer enhanced molecular density and consistency, catering to high-precision systems where even the slightest deformation can lead to system failure.
How Does Phenolic Resin with Fabric Improve Cylinder Performance?
The transition from traditional thermoplastic guides to a high-load phenolic wear strip is often driven by the need for greater structural integrity. The composite nature of the C380 material provides several technical advantages that pure polymers cannot match.
1. Superior Compressive Strength
Unlike unreinforced plastics that may “flow” or undergo plastic deformation under pressure, the fabric reinforcement in phenolic resin with fabric acts as a structural skeleton. This allows the tape to support extreme radial forces—often reaching up to 400 N/mm²—ensuring that the piston remains perfectly centered even under heavy side-loading conditions.
2. Friction Management and Thermal Stability
This low-friction C380 phenolic resin guide tape maintains a consistent coefficient of friction (approximately 0.13) across a wide temperature spectrum. By reducing the heat generated during high-speed reciprocating motions, the guide tape protects the integrity of the primary seals. Its operating range of -60°C to +130°C makes it suitable for both Arctic-grade machinery and high-heat industrial processing.
3. Excellent Chemical and Moisture Resistance
A common failure point in hydraulic systems is the swelling of guide components due to moisture absorption. Wear-resistant phenolic guide strips exhibit significantly lower water absorption compared to polyamide (nylon) or ordinary rubber components. This dimensional stability ensures that the “running clearance” between the piston and cylinder remains constant, preventing the guide from seizing or binding.
Technical Performance: Domestic vs. Imported Materials
At QZSEALS, we optimize our production based on the specific mechanical demands of your equipment. The primary difference lies in the source of the raw material used in our manufacturing process:
-

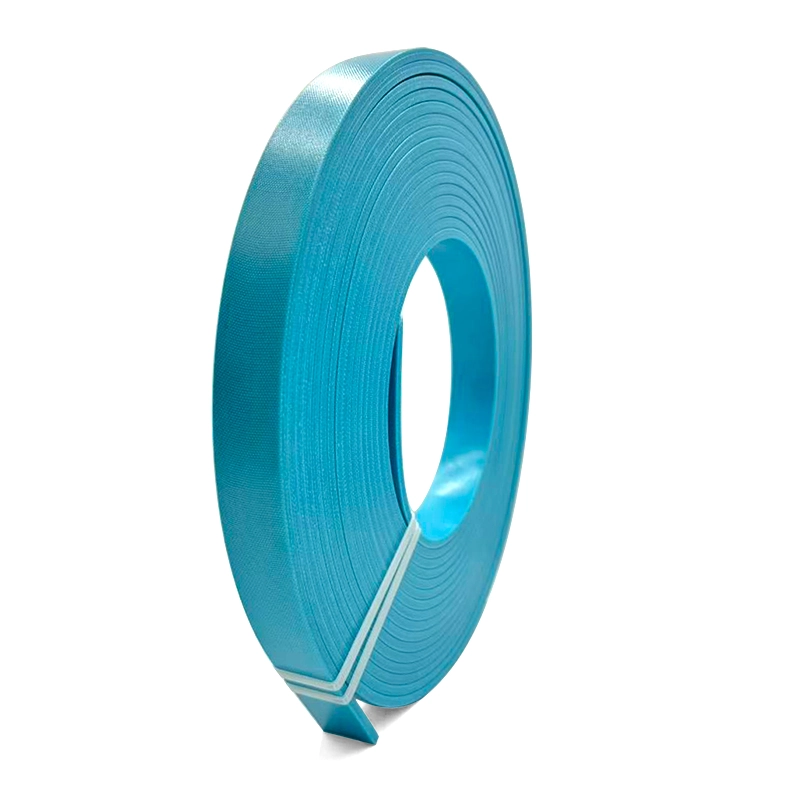

Domestic Fabric-Reinforced Phenolic: Available in turquoise and red-brown, these are our most versatile products. They provide excellent cost efficiency and sufficient mechanical strength for standard industrial hydraulic cylinders and agricultural machinery.
-
Imported South Korean Material (C380): Our high-end turquoise guide tapes use premium imported raw materials. This material is a modified phenolic resin reinforced with fine, dense polyester fabric, resulting in better structural uniformity, higher wear resistance, lower friction, and more stable long-term performance. It is the recommended choice for high-precision CNC machinery, long-stroke cylinders, and heavy-duty construction equipment.
Regardless of the material source, all guide tapes are precision-machined at our facility to ensure strict dimensional tolerance control and consistent high-quality finishing.
How to Select and Install C380 Guide Tapes for Maximum Longevity?
Proper selection goes beyond just matching dimensions. Engineers must consider the “Side Load Force” calculation. If the radial force exceeds the material’s elastic limit, the guide tape will compress permanently, leading to “piston tilting” and subsequent seal leakage.
The Importance of the Diagonal Cut
Standard wear-resistant phenolic guide strips are usually supplied with a 45-degree “slanted” or diagonal cut. This serves as a thermal expansion joint. As the material warms during operation, the gap closes slightly. Without this calculated gap, the tape would buckle, creating a high-pressure point that could scuff the cylinder bore or damage the housing.
Installation Protocol
-
Groove Inspection: Ensure the housing groove is free of burrs or machining marks. Even a small metal shard can embed itself in the phenolic fabric and act as an abrasive against the cylinder wall.
-
Alignment: The cut in the guide tape should be positioned away from the primary direction of the radial load to ensure maximum surface area contact where it is needed most.
-
Lubrication: While phenolic resin is resistant to most mineral-based hydraulic oils and lubrication greases, applying a light coat of compatible oil during installation can prevent initial “dry-start” wear.
Where is C380 Guide Tape Typically Utilized?
Due to its high mechanical and chemical resistance, the applications for C380 phenolic resin guide tape span across multiple heavy industries:
-
Engineering Machinery: Excavators, bulldozers, and cranes where high side loads are the norm.
-
Injection Molding Machines: Providing precise guidance for high-frequency clamping units.
-
Reciprocating Compressors: Supporting pistons in oil-free or lubricated gas compression environments.
-
Marine & Offshore: Utilizing the material’s resistance to moisture and salt spray for hatch cover cylinders and steering gear.
Conclusion
The selection of a guide tape is a determining factor in the maintenance cycle of any reciprocating system. C380 phenolic resin guide tape provides the necessary mechanical rigidity to protect expensive cylinder components from friction-induced damage and side-load deformation.
By offering a versatile range that includes both cost-efficient domestic phenolic resin with fabric and high-performance C380 tapes made from imported South Korean materials, QZSEALS enables engineers to optimize their equipment for specific load conditions. Furthermore, for applications requiring even lower friction and high thermal conductivity, we also manufacture premium PTFE filled bronze guide tape, ensuring a complete solution for all hydraulic and pneumatic sealing challenges. Investing in a high-load phenolic or PTFE wear strip is not just a maintenance choice; it is a commitment to the precision and longevity of your hydraulic assets.
